Graphite electrode is made out of petroleum coke, needle coke and coal pitch, through calcining, batching, kneading, forming, baking, graphitizing and machining.
It is a conductor that releases electric energy in an arc furnace to heat the furnace.
It's mainly used in electric oven like smellting steel, smelting silicon and smelting yellow phosphorus, etc.
RP: (Regular Power graphite electrode), HP: (High Power graphite electrode), UHP: (Ultra High Power graphite electrode),
IP: (Impregnated graphite electrode), SHP: (Standard-High Power graphite electrode)
Product: | Graphite Electrode |
HS Code: | 85451100 |

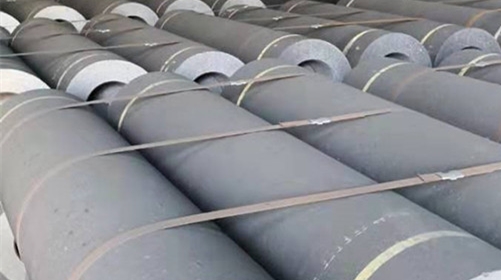

Appearance: | Siliver grey, cylinder shape. |
Function: | Low specific resisvitiy, low conspumption rate, anti-oxidation, uniform strength, good resistance to thermal shock. |
Chemical Index: | As per list |

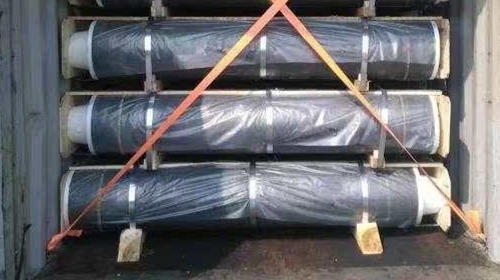

General Packing: | Pack with wooden board. |
Application: | In electric arc furnace, ladle furnace, submerged arc electric furnace for the production of steel alloy, metal and non metallic materials. |
Physical and Chemical Index | ||||||||||
Items | Regular Power | High Power | Ultra High Power | |||||||
Ø200-300 | Ø350-600 | Ø200-400 | Ø450-600 | Ø250-400 | Ø450-600 | |||||
Resistance μΩm(Max) | Electrode | 8.5 | 6.5 | 5.5 | ||||||
Nipple | 6.5 | 5.5 | 4.5 | |||||||
Density g/cm3(min) | Electrode | 1.53 | 1.52 | 1.62 | 1.60 | 1.67 | 1.66 | |||
Nipple | 1.69 | 1.73 | 1.75 | |||||||
Flexure strength Mpa(min) | Electrode | 8.5 | 7.0 | 10.5 | 9.8 | 11.0 | ||||
Nipple | 15.0 | 16.0 | 20.0 | |||||||
Elastic Modulus Gpa(max) | Electrode | 9.3 | 12.0 | 14.0 | ||||||
Nipple | 14.0 | 16.0 | 18.0 | |||||||
Ash Content%(max） | Electrode | 0.5 | 0.3 | 0.3 | ||||||
Nipple | 0.5 | 0.3 | 0.3 | |||||||
CTE(100-600℃）100-6/℃(max） | Electrode | 2.9 | 2.4 | 1.5 | ||||||
Nipple | 2.8 | 2.2 | 1.4 | |||||||
